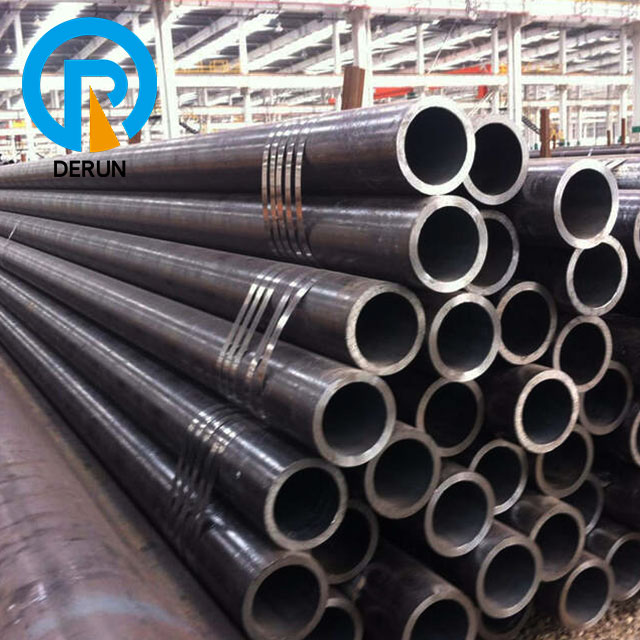

ASME SA335 P92 Boiler Tubes

Boiler pipe Standard: ASME SA106 - seamless carbon steel nominal pipe ASME SA179 - heat exchanger and condenser seamless cold pull low carbon steel pipe ASME SA192 - high pressure seamless carbon steel boiler tube ASME SA210 - Boiler and superheater with seamless medium carbon steel pipe ASME SA213 - Boiler, superheater and heat exchanger with seamless ferrite and Auschwitz alloy steel tube ASME SA335 - high temperature with seamless ferroitin alloy steel nominal tube DIN17175 - seamless steel pipe EN10216-2 made of heat-resistant steel - Non-alloy steel and alloy
Availability:

Product Description

Steel grade: ASTM A335 P5

Packing:

Bare packing/bundle packing/crate packing/wooden protection at the both sides of tubes and suitably protected for sea-worthly delivery or as requested.

Inspection and Test:

Chemical Composition Inspection, Mechanical Properties Test(Tensile Strength,Yield Strength, Elongation, Flaring, Flattening, Bending, Hardness, Impact Test), Surface and Dimension Test,No-destructive Test, Hydrostatic Test.

Surface treatment:

Oil-dip, Varnish, Passivation, Phosphating, Shot Blasting.
Both ends of each crate will indicate the order no., heat no., dimensions, weight and bundles or as requested.

ASTM A335 P5 Chemical Compositions(%)
CompositionsData
UNS Designa-tionK41545
Carbon(max.)0.15
Manganese0.30-0.60
Phosphorus(max.)0.025
Silicon(max.)0.50
Chromium4.00-6.00
Molybdenum0.45-0.65
Other Elements
Mechanical properties for ASTM A335 P5


PropertiesData
Tensile strength, min, (MPa)415 Mpa
Yield strength, min, (MPa)205 Mpa
Elongation, min, (%), L/T30/20


Boiler pipe

Standard:

ASME SA106 - seamless

carbon steel nominal pipe ASME SA179 - heat exchanger

and condenser seamless cold pull low carbon

steel pipe ASME SA192 - high pressure seamless carbon steel boiler tube ASME SA210 - Boiler and superheater

with seamless medium carbon steel pipe ASME SA213 - Boiler, superheater and heat exchanger with seamless ferrite and Auschwitz alloy steel tube

ASME SA335 - high temperature with seamless ferroitin alloy steel nominal tube

DIN17175 - seamless steel pipe

EN10216-2 made of heat-resistant steel - Non-alloy steel and alloy

steel pipe GB5310 -

seamless steel pipe GB3087 for

high-pressure boilers - Seamless steel pipe Grade for low- and medium-pressure boilers

ASME sa106b boiler tube


Standard

Grade

From

WT

Remarks

ASME SA106

SA106B、SA106C

21.3-1067mm

2-150mm


ASME SA179

SA179

19-76.2mm

2-15mm


ASME SA192

SA192

19-177.8mm

2-30mm


ASME SA210

SA210A1、SA210C

19-127mm

2-20mm


ASME SA213

T11、T12、T22、T23、T91、T92

19-127mm

2-20mm


ASME SA335

P11、P12、P22、P23、P36、P91、P92

60.3-1067mm

2-150mm


DIN17175

ST35.8、ST45.8、15Mo3、13CrMo44、10CrMo910

19-1067mm

2-150mm


EN10216-2

P195GH、P235GH、P265GH、16Mo3、13CrMo4-5、10CrMo9-10、
15NiCuMoNb5-6-4(WB36)、X10CrMoVNb9-1、X10CrWMoVNb9-2

19-1067mm

2-150mm


GB5310

20G、20MnG、25MnG、15CrMoG、12Cr1MoVG、12Cr2MoG、
15Ni1MnMoNbCu、12Cr2MoWVTiB、10Cr9Mo1VNbN、10Cr9MoW2VNbBN

19-1067mm

2-150mm


GB3087

10、20

19-1067mm

2-150mm
